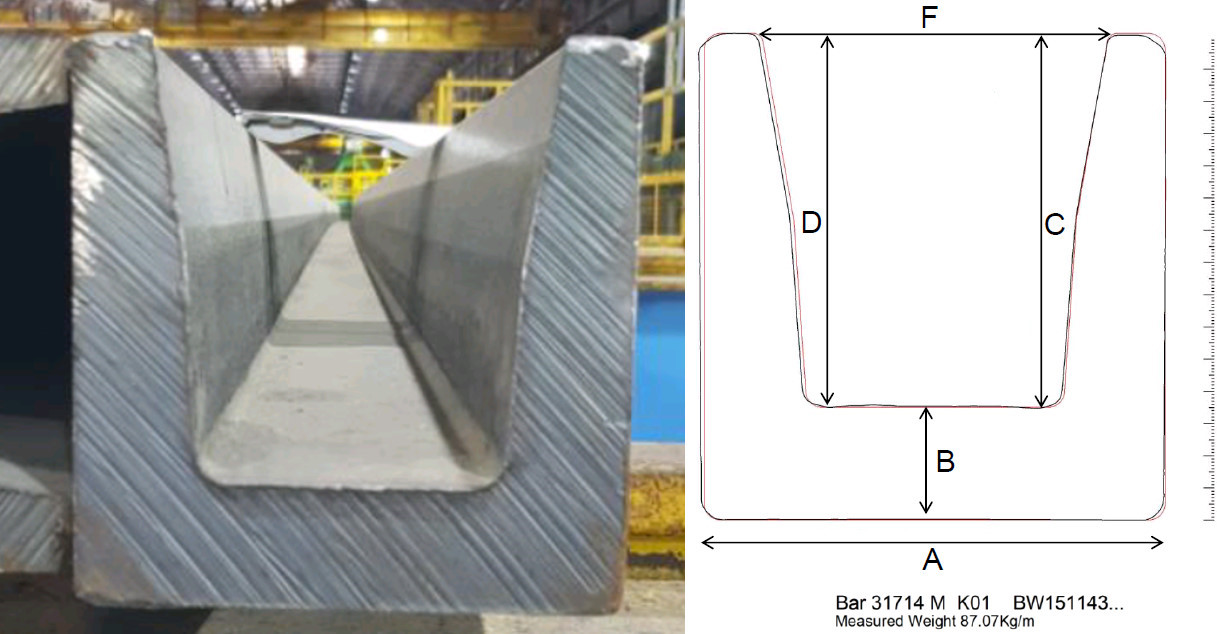

Special Profiles
- developed with consumer and rolling mill Special profile
- Problem: Replacement for a standard square solid material
- Goal: Significantly Reduce Processing Costs
- Scheduling and requirement quantity planning
- Trial rolling and material tests
- Further processing into a ready-to-install product
Project-Related Special Tubes
e.g: Culverts for the Railway
- Ø 20– 4.500 mm
- HPQ (manufacturer product qualification) approved plants
- DBS 918 005 / DBS 918 002-02 – – Production in accordance with DB Regulations

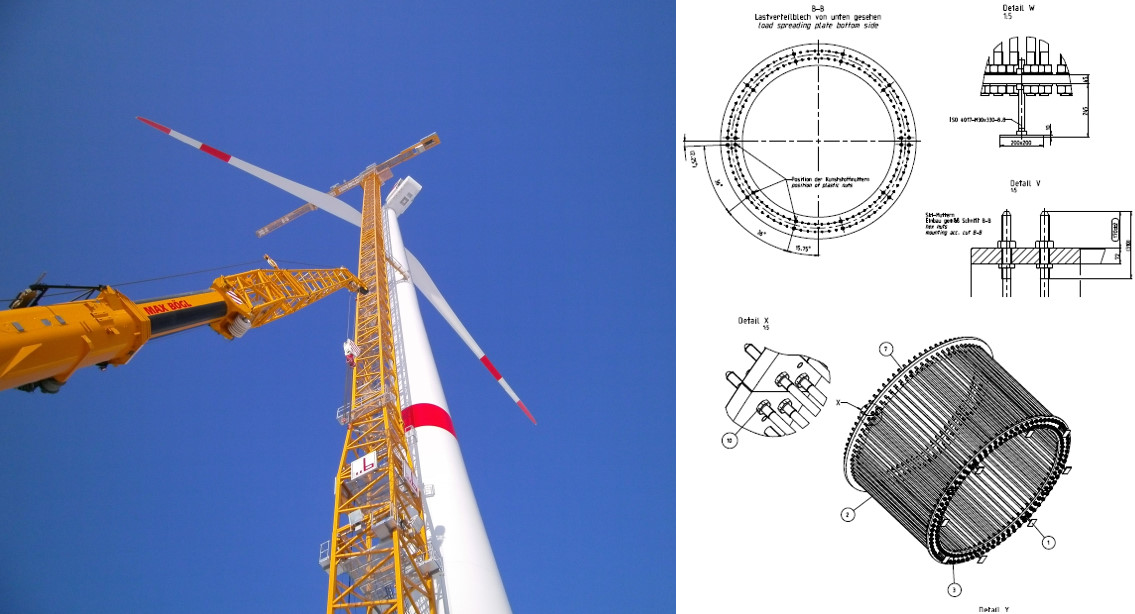

Anchor Bars for Wind Turbine Foundations
- Tempered Material in 8.8 and 10.9
- Thread M36, M42, M48, …
- Provided with shrink sleeve and sleeve tube

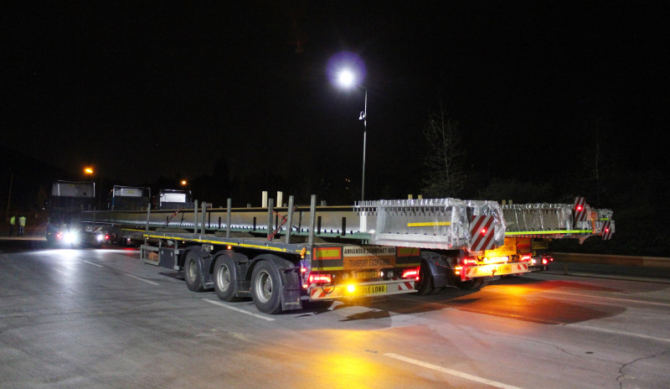

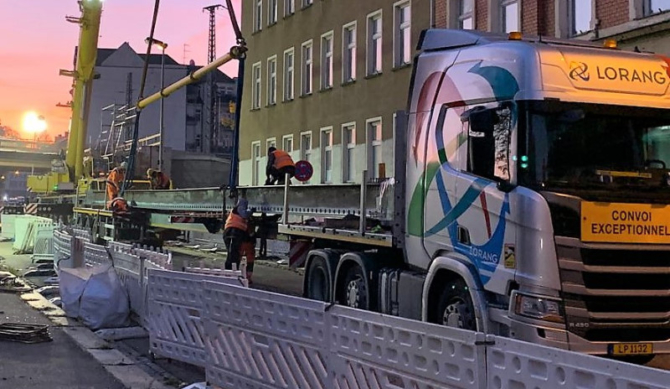

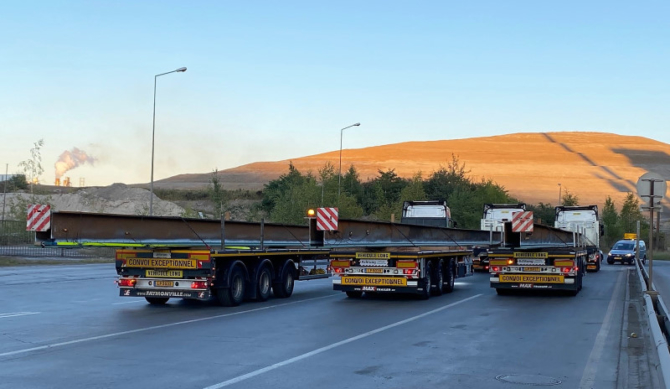

WiB Bridge Beams
Superelevated (pre-bent) steel girders for bridge construction with lengths of more than 30 m.
Manufactured in accordance with DBS 918002-02 HPQ-certified. Girders with CE mark, certificate 3.1 to EN 10204, ultrasonic testing class 2.3 to EN 10306. Manufactured to EN 1090-2 EXC3 with parabolic camber over the strong axis, edge preparation to ISO 8501-3, web holes, head bolts, corrosion protection to ZTV ING. Delivery of the ready-to-install girders directly to the construction site by special transport.
Steel Core Piles
Text and image are currently being revised and will be available again in the next few days. – Thank you for your understanding. – Thank you very much for your understanding.
Aluminum Profiles
Text and image are currently being revised and will be available again in the next few days. – Thank you for your understanding. – Thank you very much for your understanding.
Special Angles
Text and image are currently being revised and will be available again in the next few days. – Thank you for your understanding. – Thank you very much for your understanding.
